Flat Die Type Animal Waste Organic Fertilizer Livestock Manure
Granulator
Introduction of livestock manure granulator
The SKJ series livestock manure granulator is good for press
different kind of materials into columnar shape pellets, it is
mainly suing for making grass type animal feed pellet making,
organic fertilizer pellet making, and small capacity wood pellets
making.
The livestock manure granulator working principle, the motor power
is transmitted to the main shaft by the transmission mechanism, and
the main shaft drives the die to rotate; the material rotates with
the die and is forced to be squeezed between the die and the
roller, under the above action mechanism, the livestock manure
material is continuously pressed into the holes of the flat die,
and finally pressed from the die hole to form columnar type
pellets, which are finally rolled out from the discharging port
through the material discharging device.
SKJ livestock manure granulator working, the feeding materials
should be after fermentation. raw materials moisture less than 30%.
The chicken manure granulator can make different diameter size of
pellets from diameter 2mm to 10mm, by change the machine inside
flat die, but other parts no need change. The output livestock
manure fertilizer pellets with columnar shape, and if you want to
making ball like pellets, we can provide the ball shaper machine to
connecting with the flat die pellet machine. Which can process the
columnar type pellets into small ball type pellets.
The flat die livestock manure granulator machine can press
different kind of animal waste into organic fertilizer, such as
chicken dung, cow dung, sheep dung, and other animal waste or other
wsate from livestock farm... The output pellets is good fertilizer
for crop planting using.
Mainly Parameter of livestock manure pelletizer machine
| Model | Capacity (kg/h) | Power (kw) | Specification (mm) | Weight (T) | Size (mm) |
| SKJ2-250 | 300-500 | 15 | 4-6 | 0.5 | 1400x 600x 1000 |
| SKJ2-280 | 400-700 | 22 | 4-6 | 0.65 | 1760x 670x 1600 |
| SKJ2-300 | 500-800 | 30 | 4-8 | 0.76 | 1860x 670x 1600 |
| SKJ2-350 | 600-1000 | 37 | 4-8 | 1.2 | 1800x 800x 1700 |
| SKJ2-450 | 800-1200 | 45 | 4-8 | 1.8 | 1800x 850x 1750 |
| SKJ3-350 | 600-1200 | 37 | 4-8 | 2.2 | 1900x 850x 1750 |
| SKJ3-450 | 800-1500 | 55 | 4-8 | 4.3 | 2300x 1100x 1900 |
| SKJ3-550 | 1000-2000 | 75 | 4-8 | 5.5 | 2350x 1100x 2050 |

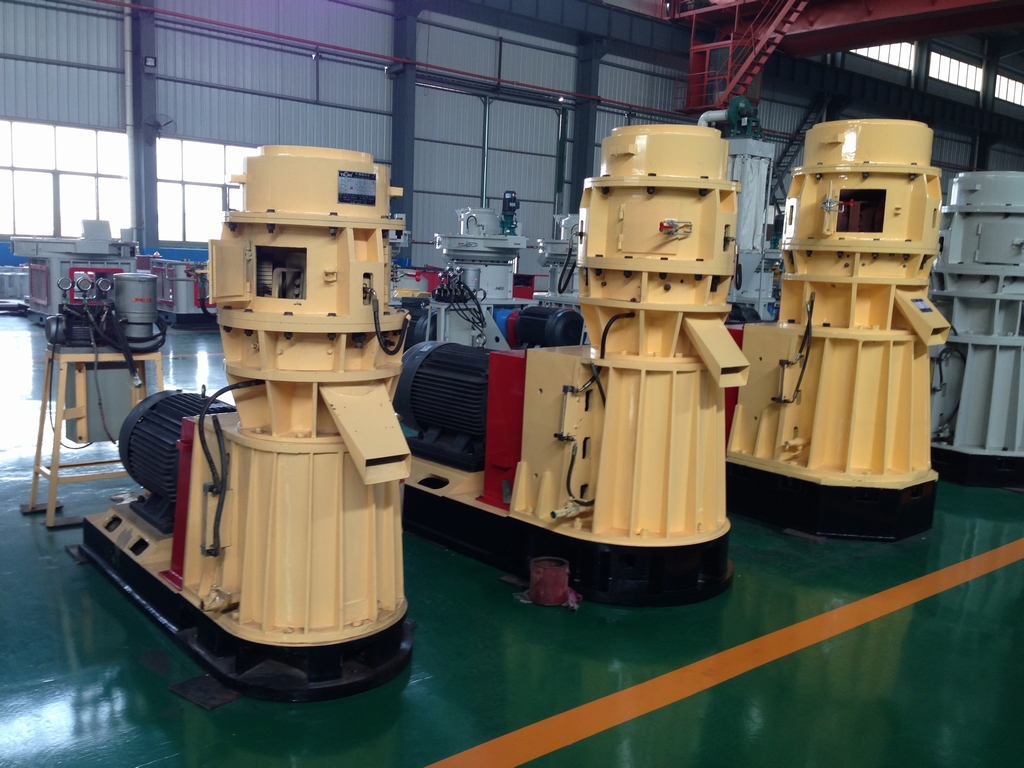

Photos of the livestock manure granulator:
The photos of organic fertilizer livestock manure pelletizer
machine:
