China hot sale Sawdust Rotary Dryer for drying Wood Chips/ Sawdust
/ Mineral Powder
Product Introduction of Sawdust Rotary Dryer:

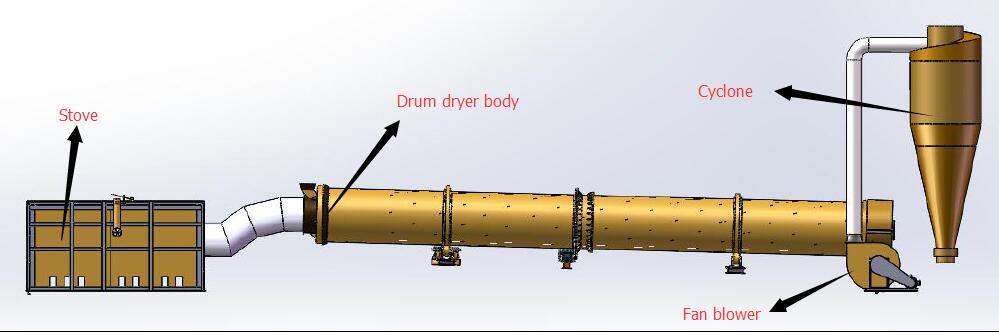

GHG sawdust rotary dryer with heating furnace, feed port, rotating
cylinder, delivery pipe, dust collector and discharge port. Wet
material is continuously sent to the drying cylinder by a conveyor.
Heat air makes full contact with the material. Being delivered and
scattered by the high-speed hot air, water in the wet material is
evaporated. The material gets fully dried in the rotating cylinder.
GHG sawdust rotary dryer is widely used in industries like biomass fuel, wood pellet fuel,
sawdust briquette, farming etc. The applicable materials are wood
powder, wood shavings, sawdust, wood chips, straws, grass, etc
The drying body of sawdust rotary dryer is composed of cylinder body, ring gear and rolling ring. The sawdust rotary dryer drying body is on the tug rolling device and block rolling device
supported by front and back rolling ring. It can control axial
direction traversing of drying body by adjusting tug rolling device
and block rolling device. The sawdust rotary dryer driving device drives drying body rotating through the ring gear.
Electric motor (frequent) as the power can achieve stepless speed
adjusting and meet the demand of different rotating speed.
The sawdust rotary dryer driving has two forms, left driving and right driving. Method of
distinction: look at from the direction of inlet, the small rotary drum dryer driving device that is at the left side of drying body is left
driving; the driving device that is at the right side of drying
body is right driving.
Main Parameters of sawdust rotary dryer:
Model | Power(kw) | Fan power(kw) |
GHGΦ1.2×12×1 | 5.5 | 15 |
GHGΦ1.4×12×1 | 7.5 | 22 |
GHGΦ1.5×12×1 | 7.5 | 30 |
GHGΦ1.5×15×1 | 11 | 30 |
GHGΦ1.6×15×1 | 11 | 37 |
GHGΦ1.6×18×1 | 11 | 37 |
GHGΦ1.8×12×1 | 11 | 30 |
GHGΦ1.8×15×1 | 15 | 30 |
GHGΦ1.8×18×1 | 15 | 45 |
GHGΦ1.8×20×1 | 15 | 45 |
GHGΦ1.8×24×1 | 18.5 | 45 |
GHGΦ2.0×18×1 | 15 | 45 |
GHGΦ2.0×20×1 | 18.5 | 45 |
GHGΦ2.0×24×1 | 18.5 | 45 |
GHGΦ2.2×20×1 | 18.5 | 75 |
GHGΦ2.2×24×1 | 18.5 | 75 |
GHGΦ2.5×20×1 | 22 | 75 |
GHGΦ2.5×24×1 | 22 | 75 |
GHGΦ2.8×20×1 | 22 | 75 |
GHGΦ2.8×24×1 | 22 | 75 |
GHGΦ2.8×28×1 | 30 | 75 |
GHGΦ3.0×24×1 | 30 | 132 |
GHGΦ3.0×28×1 | 30 | 132 |
GHGΦ3.5×20×1 | 37 | 160 |
GHGΦ3.5×24×1 | 37 | 160 |

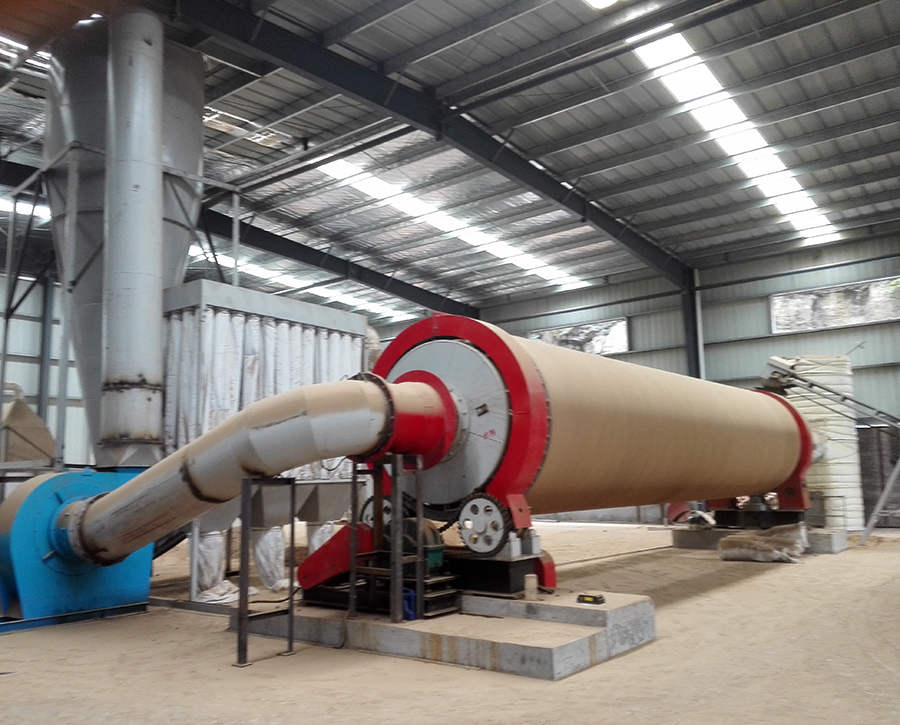

Product photos of sawdust rotary dryer:
