XGJ560 90KW Auto-Lubrication Industry Using Straw Pellet Press
Machine
Introduction for straw pellet press machine:
The XGJ560 straw pellet preess machine is our main product which
has adopted the essence of pellet mill in oversea market and
domestick market.
In Europe, many customer using it to press the corn and wheat
straws. In domestic, many customers using it to press the straw and
grass into good quality pellets.
This mchine with vertical double layer ring die structurer, ring
die made of stainless steel or alloy steel, ring die verticall
installed on the biomass pellet mill, with 2 layers, one ring die
can using 2 times, saving the running cost for the straw pellet
press machine, and ring die is vised no rotary, only inner rollers
is rotating, this structure make the machine working stable.
This 90KW industry using straw pellet press machine have 2 pcs Big
rollers rotary againsed the innerside of ring die inside, so big
part ring die fixed on machine, only rollers rotary, make the wood
pellet machine working more stable, roller shell after heat
treatment, long lifetime.
XGJ560 straw pellet press machine with automatical lubircating
system, can lubricating the main shaft bearing and the roller
bearing automatically. can make the machine no stop continually
working, low maintenance ratio, running cost for pellet making is
low.
This vertical type ring die straw pellet press machine is good for
press difficult molding materials with low adhesion rate, for
example, hard wood sawdust, soft wood sawdust, rice husk, paddy
straw, sunflower husk, peanut shell and coffe husk, or other fruit
shell; branch, stem, bark and other wood waste; a variety of crop
stalks, and other biomass materials.
Mainly Parameters for straw pellet press machine:
| Model | Power (kw) | Capacity for wood pellets(kgs/h) | Weight of the machine(kgs) | Dimension of the machine (mm) |
| XGJ560 | 90+1.5+0.37+1.5 | 1000-1500 | 6100 | 2600x1300x2300 |
| XGJ560P | 132+1.5+0.37+1.5 | 1500-2000 | 4600 | 2600x1250x1600 |
| XGJ850 | 220+3+0.37(0.55)+2.2 | 2000-3000 | 14500 | 3300x1400x3100 |
| XGJ850P | 220+3+0.37(0.55)+2.2 | 2500-3500 | 9600 | 2600x1600x1950 |

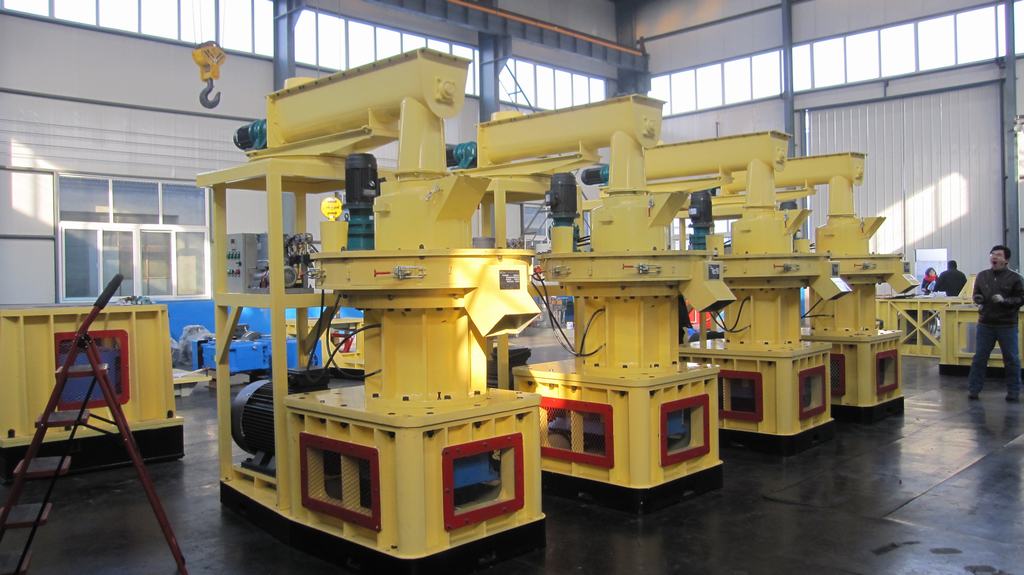

Photos of industry pellet press machine:
Sucessful Case for straw pellet press machine customers:
We have installed many complete biomass pellet mill line in
domestic and oversea, such as pellet making line in Malaysia,
India, Indonesia, Vietnam, Myanmar....
Customers Visiting:
Welcome you visiting our company for more deply communication about
the biomass pellet mill.
There are many photos for our cusotmer visited us before, hope it
can give you a rougly idea about our biomass pellet mill and our
company.
